Ebco Quadro Slim 2 35Kg
Regular price
Rs. 1,470.00
Click here to get Professional discounted prices.
Couldn't load pickup availability
Taxes included. Order fulfilment is subject to stock availability.
Shipping calculated at checkout.
Product Description
Product Description

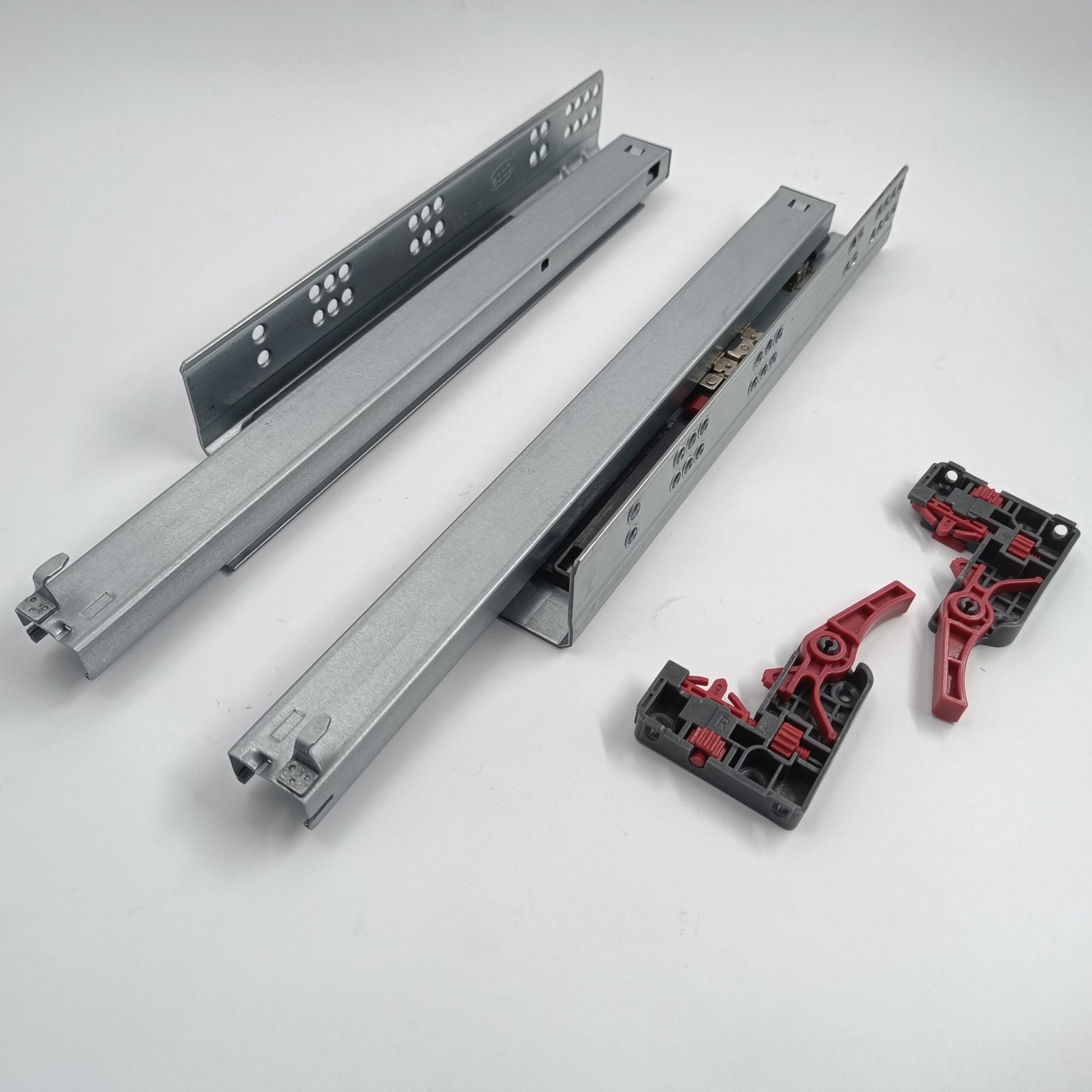

This concealed drawer slide - slim 2 model is compact and uses minimal space below the drawer (27mm clearance).
Available with facia bracket for wooden drawers and without facia bracket for kitchens baskets.
Full extension with soft close and tool free assembly and removal of drawers.
Height adjustment: 0 ~ +3mm.
Depth adjustment: 0 ~ +5mm.
Width adjustment: ±1.5 mm
Load Capacity- 35kgs.
Soft Closing.
| Item | Item code | Size (mm) | Finish |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS230-SC | 300 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS235-SC | 350 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS240-SC | 400 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS245-SC | 450 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS250-SC | 500 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS255-SC | 550 | Zinc White |
| Concealed Drawer Slide - Slim 2 (with facia bracket) | CDSS260-SC | 600 | Zinc White |
